Affordable Optical Breadboards supplier Australia

Over 40 years of innovation history enables us to deliver excellent performance and unmatched build quality of Optical Breadboards and Table Tops at affordable prices in Australia and New Zealand.

Our Optical Breadboards and Tables have been chosen by leading Australian universities like The University of Sydney, Australian National University, The University of Melbourne, Monash University, Sydney NanoScience Hub (SNH-USYD), University of Technology Sydney, Queensland University of Technology, Griffith University, Australian National Fabrication Facility (ANFF), The University of Queensland, University of South Australia, Curtin University, The University of Western Australia, CSIRO, other Government labs and industry R&D facilities.

Optical Breadboards and Table Tops – Custom Designs or Standard Sizes – Delivered Faster and Cheaper!

Structural Design

The DVIO-B series of Optical Table Tops guarantees superior performance levels of broad banding and rigidity that effectively minimise relative displacement in a wide frequency range. The outstanding performance level of our optical tables and breadboards is ensured by the following features:

Corrugated honeycomb steel core

The core is comprised of layers of steel arranged in a corrugated honeycomb fashion to increase core density and minimise cell size. These corrugated honeycomb steel layers are vertically epoxy-bonded with stainless steel top skins, carbon steel bottom skins, and sidewalls to offer static and dynamic rigidity. Breadboard Honeycomb structure

Small honeycomb core cells

Our core yields the highest core density and the smallest honeycomb cell size 2.9 cm2 – leading to increased elastic selection modulus and high natural resonance frequency of the optical tops. This yields a super rigid table top that minimises external vibrations and deflection under loads. The steel construction also ensures long-term thermal stability.

Honeycomb structure configuration

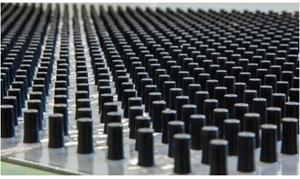

Sealed Mounting Holes

Contamination of the honeycomb core is prevented by individually sealing each mounting hole with non-corrosive, spill-proof nylon cups using epoxy.

Honeycomb structure Cups

Ultra-clean table top surface

The surface of the table top is gently sanded to achieve a non-reflecting surface. Precise tapping is followed by meticulous cleaning to remove any residual metal particles and cutting fluids from the surface.

Honeycomb structure Air Holes

DVIO-B Series of Table Tops and Breadboards are designed with superior rigid steel honeycomb core structures that offer maximum stiffness-to-mass ratios and broadband damping to reduce resonance amplitudes and deflection.

DVIO-B Series: Products

Scientific Grade Optical Tops

DAEIL Systems Scientific Grade Optical Tabletop

Our Scientific Grade Optical Tops are based on broadband standard damping configurations which minimise relative displacement in a wide frequency, offering a promised performance and quality for extensive applications. They are suitable for general applications such as Raman Spectroscopy, bio-Imaging, and micro-machining.

The scientific grade optical tops provide the same features as the research grade optical tables but with reduced structural damping levels.

200mm, 300mm, and 400mm thickness models are available in planar sizes ranging from 1000mm x 1000mm to 3600mm x 1500mm.

Research Grade Optical Tops

DAEIL Systems Research Grade Optical Tabletop

Our Research Grade Optical Tops offer the finest performance level of broadband damping that effectively minimises relative displacement between components in a wide frequency range. They are suitable for high-resolution applications such as holography, nanopositioning, and ultrafast optics research. They have stainless-steel tops with a honeycomb core and carbon steel bottom and sidewalls.

The research grade optical tops provide higher structural damping level, increased elastic selection modulus, and improved rigidity compared to scientific grade optical tops.

200mm, 300mm, and 400mm thickness models are available in planar sizes ranging from 1000mm x 1000mm to 3600mm x 1500mm.

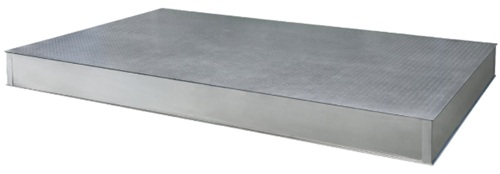

Non-magnetic Stainless Steel Optical Tops

Non-magnetic stainless steel optical tops are made of 304 series ferromagnetic stainless steel for clean rooms and non-magnetic applications. The non-magnetic stainless steel optical tops provide the same features and benefits that are present in the research grade optical tops.

The stainless steel optical tops feature the finest performance level of broadband damping that effectively minimises relative displacement in a wide frequency, superior structural damping level, and ultimate rigidity. We offer customisation of all optical tops to meet a variety of experimental requirements.

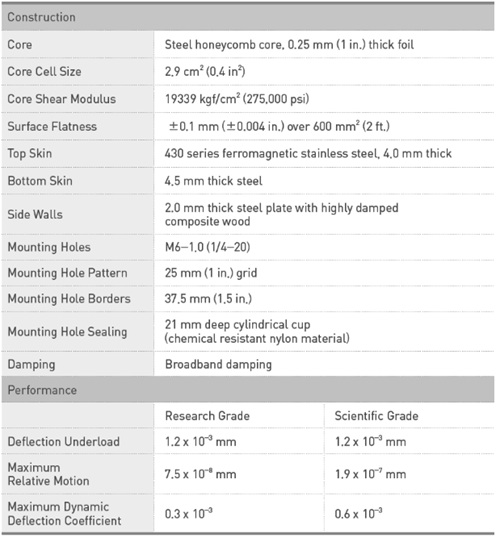

Comparison of specifications of Table Tops

How to Order

Optical Table Tops can be ordered by specifying the following information:

Table top dimensions
Table Top thickness
Total table height
Research Grade or Scientific Grade

We substantially study customers’ requirements in order to provide the right isolation options for optical tables. Contact us for queries regarding product specifications, requirements and applications.

Honeycomb Optical Breadboard

Honeycomb Optical Breadboards

25 mm, 50 mm, and 100 mm thick optical breadboards provide excellent rigidity and damping, effectively reducing the relative motion over a wide frequency range.

Aluminium Optical Plate

Aluminium Optical Plates

DSAP series Aluminium optical plates offer a solid black anodised surface with a grid of M6 mounting holes for fixing end-users’ components. They provide the following features:

The black anodised surface reduces reflection of light and prevents the optical plates from turning rusty or corroded.
Selection of 12 mm and 15 mm thick aluminium optical plates is an optimal solution for mounting applications that do not require critical vibration damping.
